Top sale automatic two cavities blowing machine in Taizhou

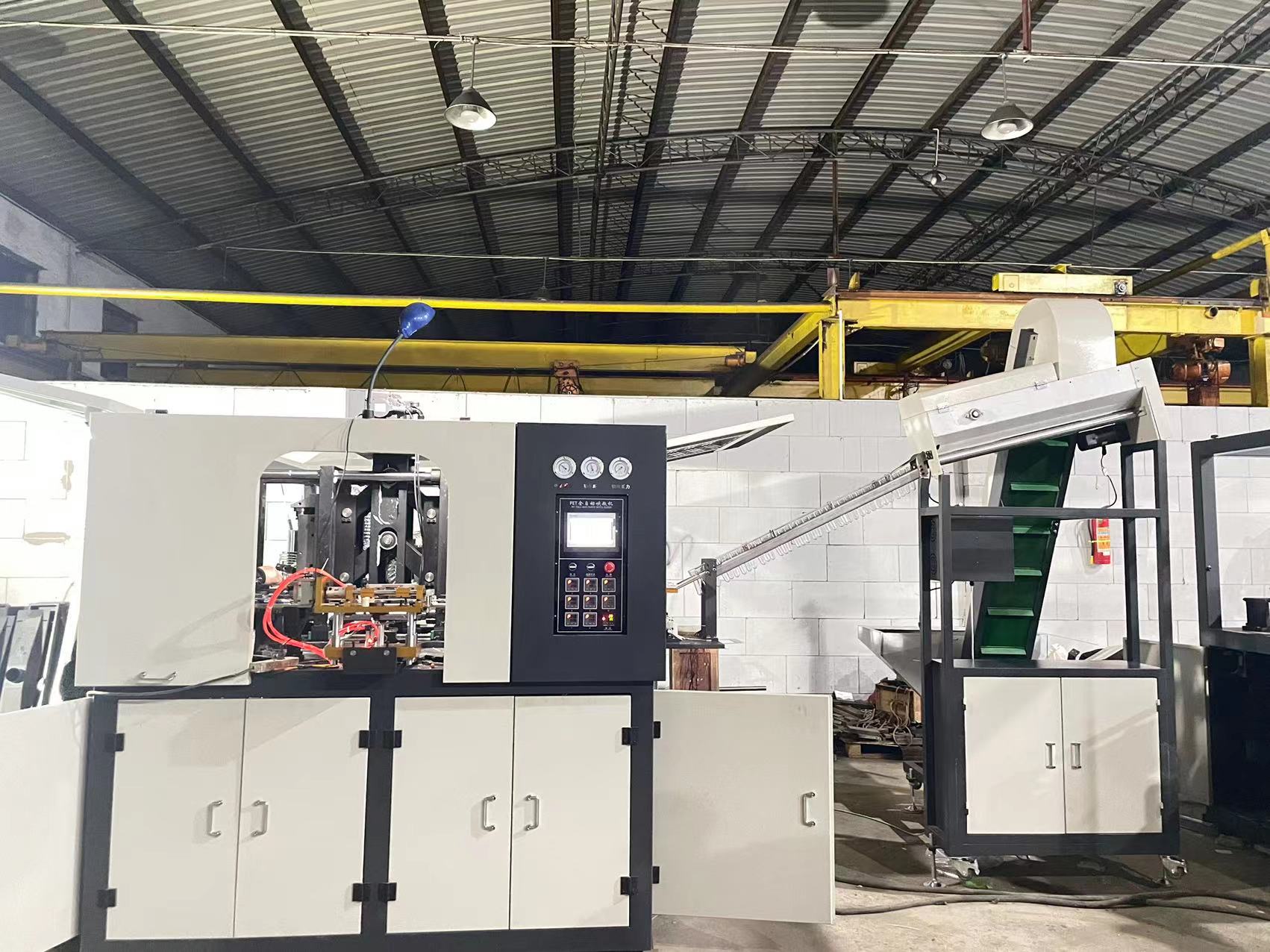

SP automatic blow molding machine is a multi-function plastic blowing equipment. Mainly for the production of many kinds of PET mineral water bottles,edible oil bottles,jar(wide-mouth bottles),cosmetic packing bottles,and so on.

Quantity:
Availability:





Inquire Add to Basket

Product Description

TYPE	Item	SP-1000-2
CONTAINER	Number of cavity	2
	Theoretical output	2000-3000pcs/hr
	Max.container volume	1000ml
	Max.neck diameter	38mm
	Max.container diameter	105mm
	Max.container height	350mm
ELECTRICAL SYSTEM	Number of lamp	32pcs
	Max.heating power	30kw
	Installation power	15kw
	Actual power consumption	13kw
AIR SYSTEM	Operatating pressure	8kg/c㎡
	Low pressure consuming	2000Ltr/min
	Blowing pressure	≤30kg/c㎡
	High pressure consuming	1500-2500Ltr/min
CHILLER WATER	Operating pressure	5-8kg/c㎡
	Temperatuer	10℃
	Consuming	2000kcal/hr
	Flow rater	25Ltr/min
MACHINE	Machine dimension	3.01.91.83(m)
	Machine weight	4.0T
APPENDING MACHINE	Machine dimension	2.42.53.0(m)
