30mm 14g
Super mould
SP-64
| Quantity: | |
|---|---|
Each cavity has a single independent mould clamping and adopt a multi-stage taper positioning system to ensure mould eccentricity(eccentricity within 0.05-0.07).
The threaded is manufacture according the international standards, and the material is imported nitride steel( hardness>HRC60).
The unique hot runner system ensures the same pressure and PET flow ratio of each cavity.
Product description

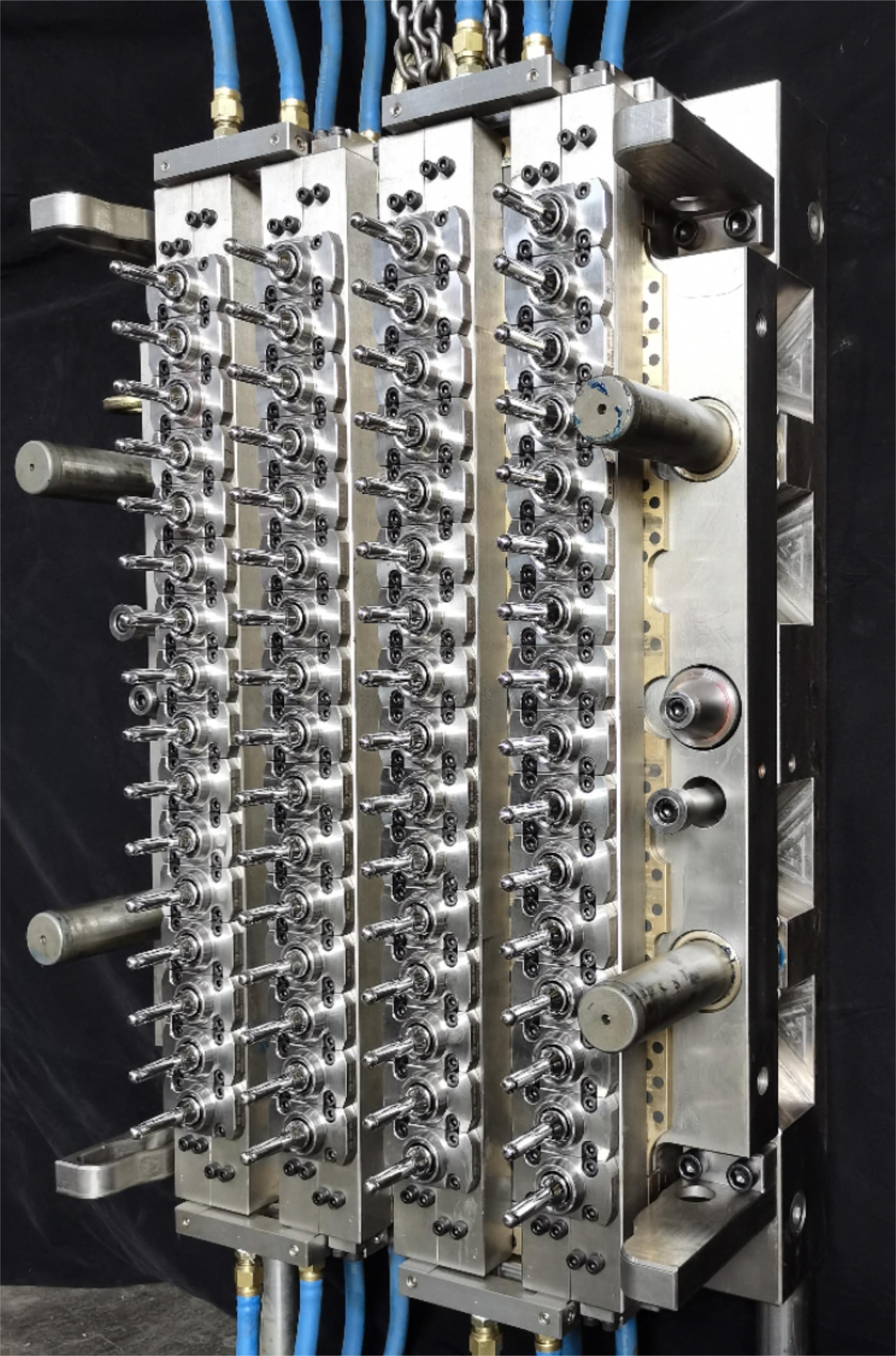

Mould name | PET preform mould |
Cavity number | 64 cavities |
Mould structure | Hot runner with valve gate system |
Mould core/cavity material | S136 |
Mould plate material | P20 or 3Cr13 |
Valve pin material | SKH51 Hardness:59-61HRC(from Japan) |
Heating ring material | (from Italy) |
Insulation cap material | Dupont-U.S |
Nozzle material | Beryllium bronze hardness is 38-40HRC |
Design software | UG or Auto CAD |
Delivery time | 50 days after get the deposit and confirm drawing |
Term of payment | 40%TT deposit , 60% TT before delivery |
What is the advantage of our company
1、Strict delivery time
2、Higher cost performance
3、Good after-sales service
4、Strict quality control
5、Professional preform mould maker
6、3D design
Why choose us
We are a professional manufacturer of PET perform mould. We have a high-class and professional technical team. Advanced mould tooling equipment, CAD / CAM / CAE systems and CNC processing centers. All of these factors ensure the high quality of our mould. At the same time, we also try our best to offer better service. Not only during designing and manufacturing, but also from testing through to after-sales service, we aim to serve customers as best as we can.
